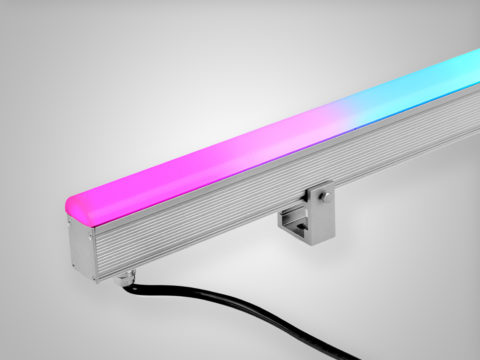

Ixion DMX Linear LM18

Ixion DMX Linear LM18

Our DMX Linear Products are products that are actively used in linear illumination. Our DMX Linear products, which we use to reveal the masses of architectural constructions, are preferred with high IP values.

Category:
General Details
  • With this luminaire, shopping center, bank and bridge etc. It is used on facades.
  • This LED luminaire is manufactured with high brightness CREE LED light led chip.
  • Class 1 circuit boards and components are used for long life.
  • Save 40% power with more efficient power
  • Wide operating voltage range DC12V-DC24V.
  • Standard DMX512 control protocol (Max 44 sec / frame)
  • The DMX address can be set automatically and
  • Hot compression and reverse link protection.
Technical information
Model LM181006001 LM181006003 LM181006004
Dimensions 1000*18*38mm 1000*18*38mm 1000*18*38mm
Color White (2700-6500K) RGB RGBW
LED SMD 5050 SMD 5050 SMD 5050
LED QTY 60 60 60
Beam Angle 120 120 120
Voltage 24VDC 24VDC 24VDC
Power 8.5W 8.5W 10W
Control DMX512 DMX512 DMX512
Adress Setting Automatic Automatic Automatic
Pixel Meter 1/2/4/5/10/20 1/2/4/5/10/20 1/2/4/5/10/20
DMX Channel 1/2/4/5/10/20 1/2/4/5/10/20 1/2/4/5/10/20
Housing Color Grey Grey Grey
Difuser Opal Opal Opal
Cable Entry Bottom Bottom Bottom
Operating Temperature -40°C to 50°C -40°C to 50°C -40°C to 50°C
Storage Temperature -40°C to 80°C -40°C to 80°C -40°C to 80°C
Certificate CE / RoHS CE / RoHS CE / RoHS
IP IP67 IP67 IP67
Product Application Video
Contact Us

Please contact us for detailed information about this product and other products.
