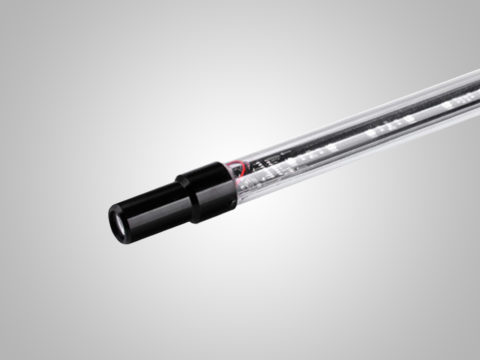

Triton Clear TC100

Triton Clear TC100

100 cm, double sided led, 360 drc effect look led tube is used to make 3D effect on ceilings in entertainment centers.

Category:
General Details
  • High brightness 12 LED pixel dot.
  • RGB, RGBW and all other colors.
  • Working Voltage 24VDC.
  • Energy consumption is 2,5 watts.Aluminum injection body, side or bottom cable, transparent diffuser.
  • It works with the DMX512 protocol (Max 44 frm / sec).
  • Pixeller synchronization is provided by Artnet Control units.
  • Reverse connection protection is available.
  • It is a product with high external protection standard and resistant to external factors.
  • It is designed for use in architectural lighting projects, bridges and high buildings such as skyscrapers.
Technical information
Model TC050 TC075 TC100 TC150 TC200
Diameter 30mm 30mm 30mm 30mm 30mm
Length 500mm 750mm 1000mm 1500mm 2000mm
Color RGB RGB RGB RGB RGB
LED SMD 5050 SMD 5050 SMD 5050 SMD 5050 SMD 5050
LED QTY 32 48 64 96 128
Beam Angle 360 360 360 360 360
Voltage DC24V DC24V DC24V DC24V DC24V
Power 6W 9W 12W 18W 24W
Control DMX512 DMX512 DMX512 DMX512 DMX512
Addressing Manuel Manuel Manuel Manuel Manuel
Pixel QTY 8 pixels 12 pixels 16 pixels 24 pixels 32 pixels
DMX Channel 24 36 48 72 96
Housing Color Clear Clear Clear Clear Clear
Difuser Clear Clear Clear Clear Clear
Cable Entry Bottom Bottom Bottom Bottom Bottom
Operating Temperature -20 to 50℃ -20 to 50℃ -20 to 50℃ -20 to 50℃ -20 to 50℃
Storage Temperature -40°C to 80°C -40°C to 80°C -40°C to 80°C -40°C to 80°C -40°C to 80°C
Certificate CE / RoHS CE / RoHS CE / RoHS CE / RoHS CE / RoHS
IP IP20 IP20 IP20 IP20 IP20
Product Application Video
Contact Us

Please contact us for detailed information about this product and other products.
